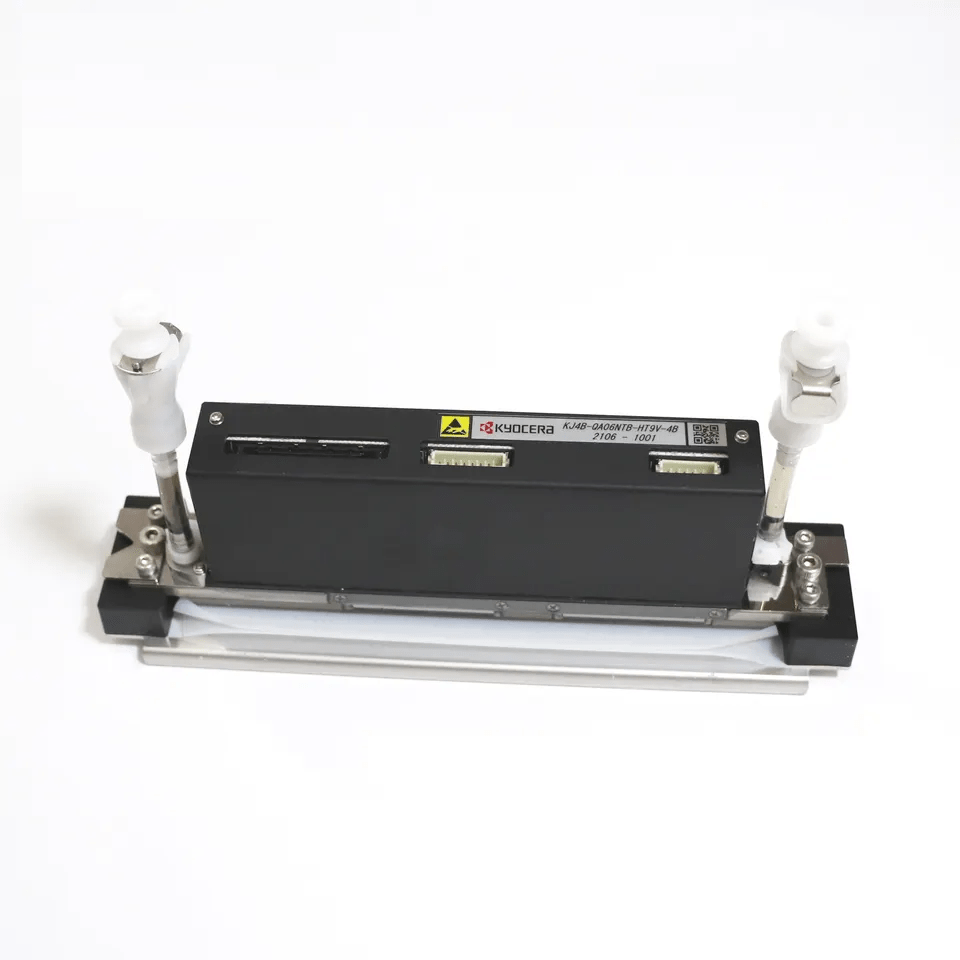

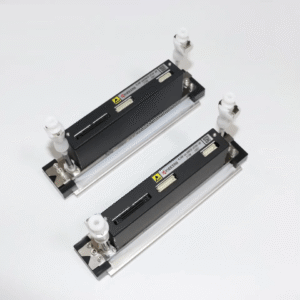

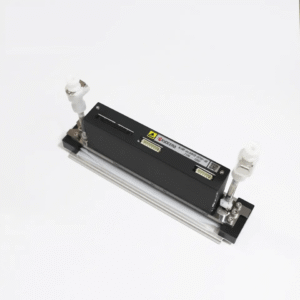

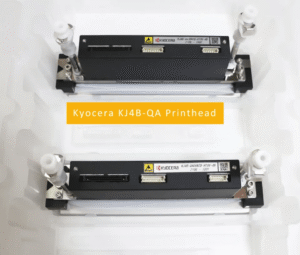

Kyocera KJ4B-QA Printheads
The KJ4B Series printhead is designed for high speed printing of water-based inks. It is optimal for hi-end garments and textiles printing.
The Kyocera KJ4B-QA printhead is meticulously designed for digital textile printing, offering a range of features to optimize performance:
- Wide Print Width: With a 108mm width, it allows for broader printing coverage, reducing the need for numerous printheads.
- High-Speed, High Resolution, and Grayscale Printing: This printhead excels in achieving high-speed, high-resolution, and grayscale printing, all simultaneously. This versatility is essential for various printing requirements.
- Reliability in Continuous Printing: The unique ink channel design ensures a stable ink supply to all 2,656 nozzles. This design enhances reliability, crucial for continuous printing operations, minimizing interruptions and maintaining consistent print quality.
Kyocera KJ4B-QA Printheads features internal filters that eliminate foreign objects from ink and an internal heater that adjusts the impact of external temperatures. It’s unique ink channel design provides a stable ink supply.
Printhead Data
| Parameter | Kyocera KJ4B-QA Printheads |
| Widh x Depth x Height [mm] | 200 x 25 x 57.9 |
| Weight [g] | 420 |
| Number of Nozzles (in effective Print Width) | 2656 (2558) |
| Standard Resolution [dpi] | 600 x 600 |
| Effective Print Width [mm] | 108.25 |
| Max. Drive Frequency [kHz] | 30 |
| Max. Print Speed [m/min] | 75 |
| Drop Volume [pL] | 5, 7, 12, 18 |
| Optimum Ink Viscosity [mPa*s] | 5.0 – 6.0 |
